An Encoding of Interaction Nets in OCaml

Motivation

• No previous encoding in OCaml
• Primary interest: manual encoding
• Most existing encodings focus on efficiency
• Original paper presented a type system
• Can we express this type system in OCaml?
• Can we make use of OCaml's support for parallelism?

Interaction nets

• Visual programming language
• Invented by Yves Lafont [1]
• Used for optimal [2] and efficient [3] implementations of $\lambda$-calculus

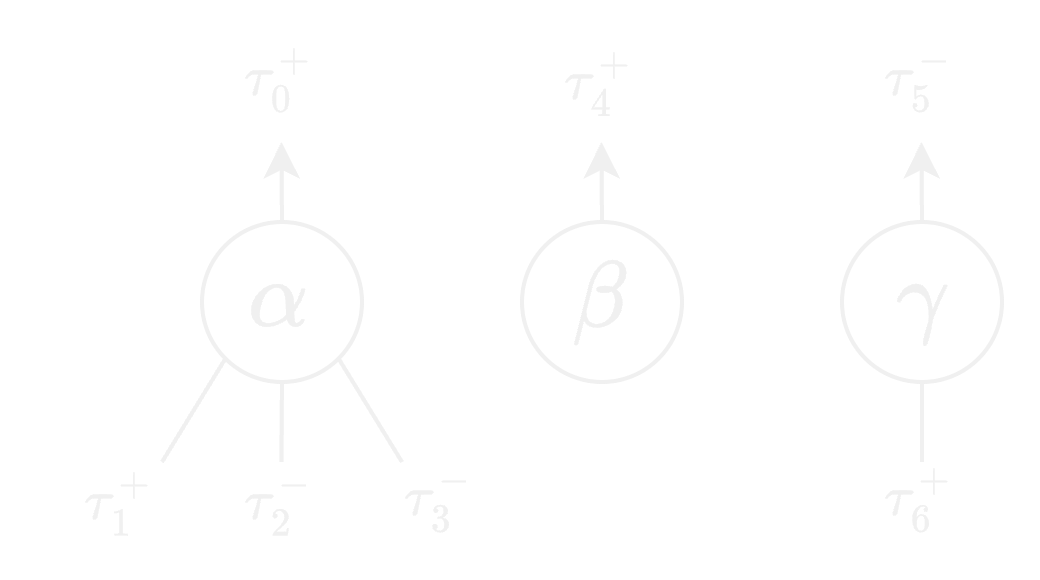

Agents

$\alpha, \beta, \gamma \in \Sigma$   (label set)

value type (int, bool, list, ...)

polarity ($+$, $-$)

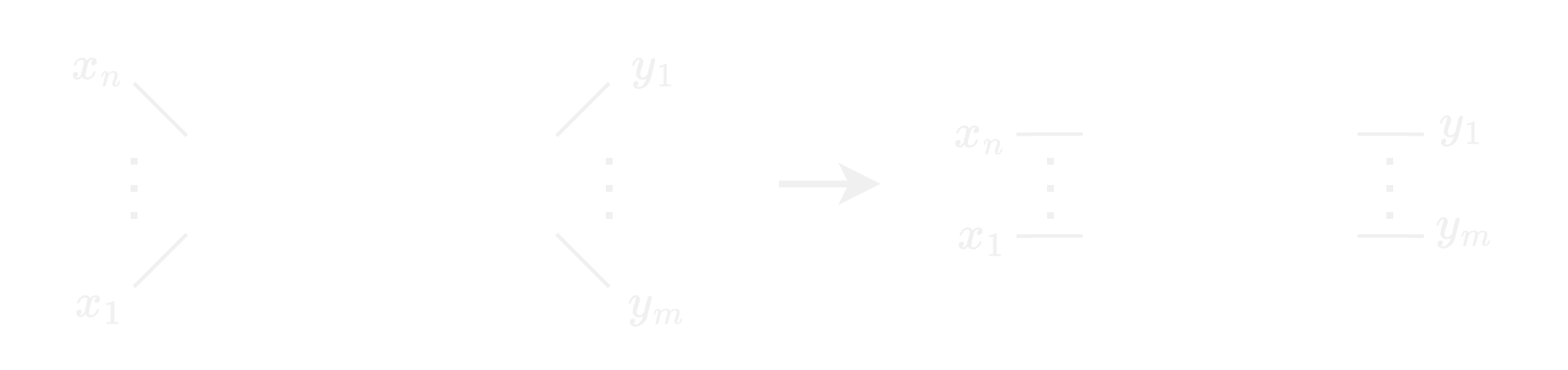

Rules

$(\alpha \times \beta \rightarrow N) \in \mathscr{R}$   (rule set)

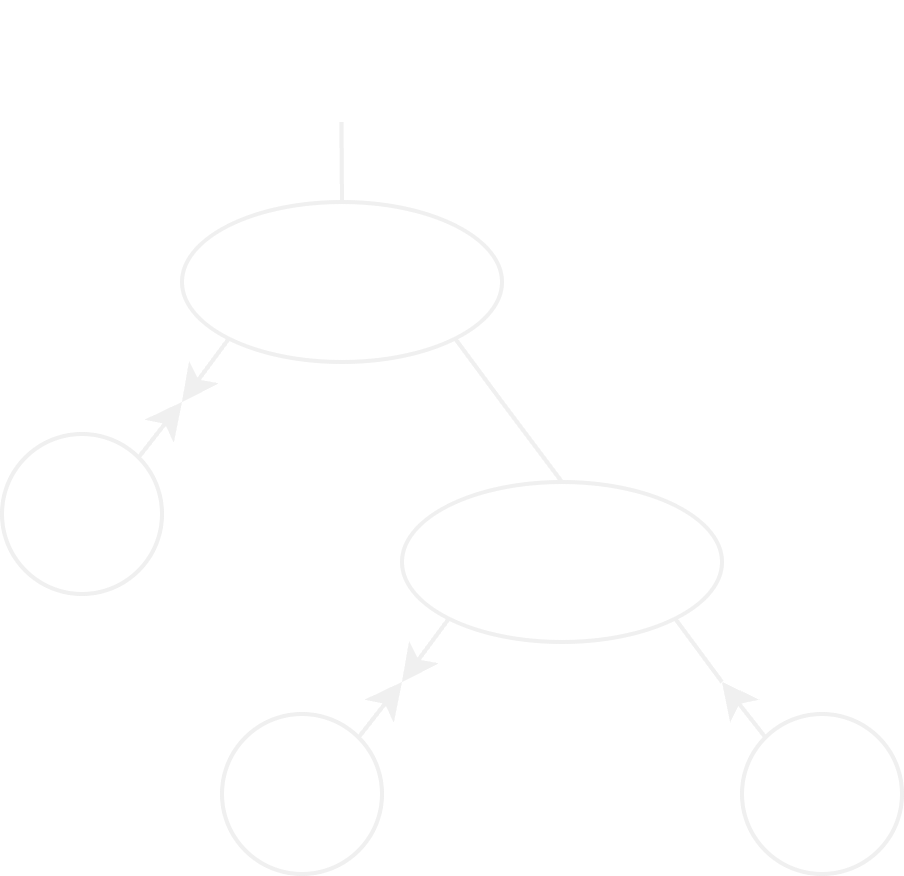

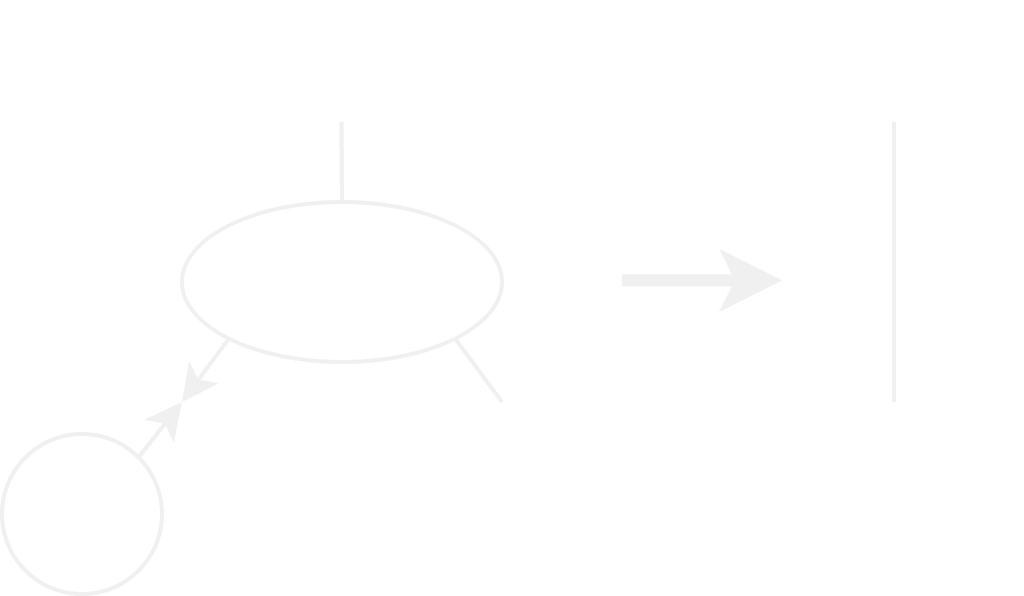

Example

First encoding

				type id =
					| T
					| F
					| And

				type agent = {
					id : id;
					ports : agent Array.t;
				}


Second encoding

				type agent =
					| T
					| F
					| And of agent * agent


• Arity is enforced by type-system
• A value of type agent represents the principle port
• Nets are constructed by recursive application of constructors

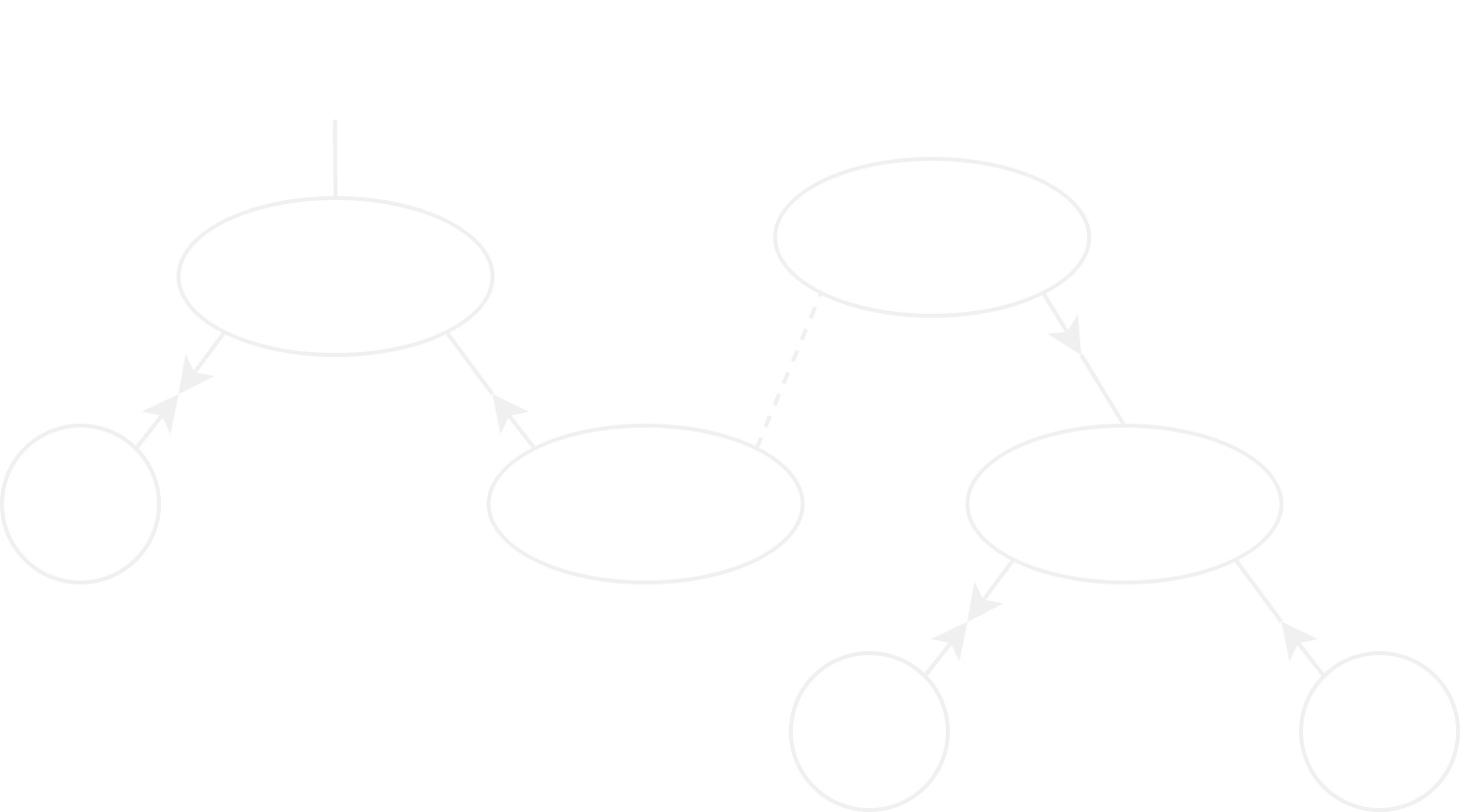

Auxiliary connections

Auxiliary connections

Auxiliary connections

				type agent =
					| T
					| F
					| And of agent * agent
					| NamePos of agent promise
					| NameNeg of agent resolver


		let new_name () =
			let promise, resolver = make_future () in
			NamePos promise, NameNeg resolver


Encoding rule application

Encoding rule application

				let rec apply_rule a1 a2 =
					match a1, a2 with
					| T, And (r, b)  -> b -><- r
					| And (r, b), T  -> b -><- r

					| _, _  -> failwith "No rule"

				and ( -><- ) a1 a2 =
					run_async pool
						(fun _ -> apply_rule a1 a2)


Encoding rule application

				let rec apply_rule a1 a2 =
					match a1, a2 with
					| T, And (r, b)
					| And (r, b), T  -> b -><- r

					| _, _  -> failwith "No rule"

				and ( -><- ) a1 a2 =
					run_async pool
						(fun _ -> apply_rule a1 a2)


Encoding rule application

		let rec apply_rule a1 a2 = match a1, a2 with
			| T, And (r, b)
			| And (r, b), T  -> b -><- r

			| F, And (r, _)
			| And (r, _), F  -> F -><- r

			| NamePos v, a
			| a, NamePos v   -> await v -><- a

			| NameNeg v, a
			| a, NameNeg v   -> resolve v a

			| _, _           -> failwith "No rule"


New agents

New agents

		type agent =
			| Int of int
			| IsEven of agent
			| T
			| F
			| And of agent * agent
			| NamePos of agent promise
			| NameNeg of agent resolver

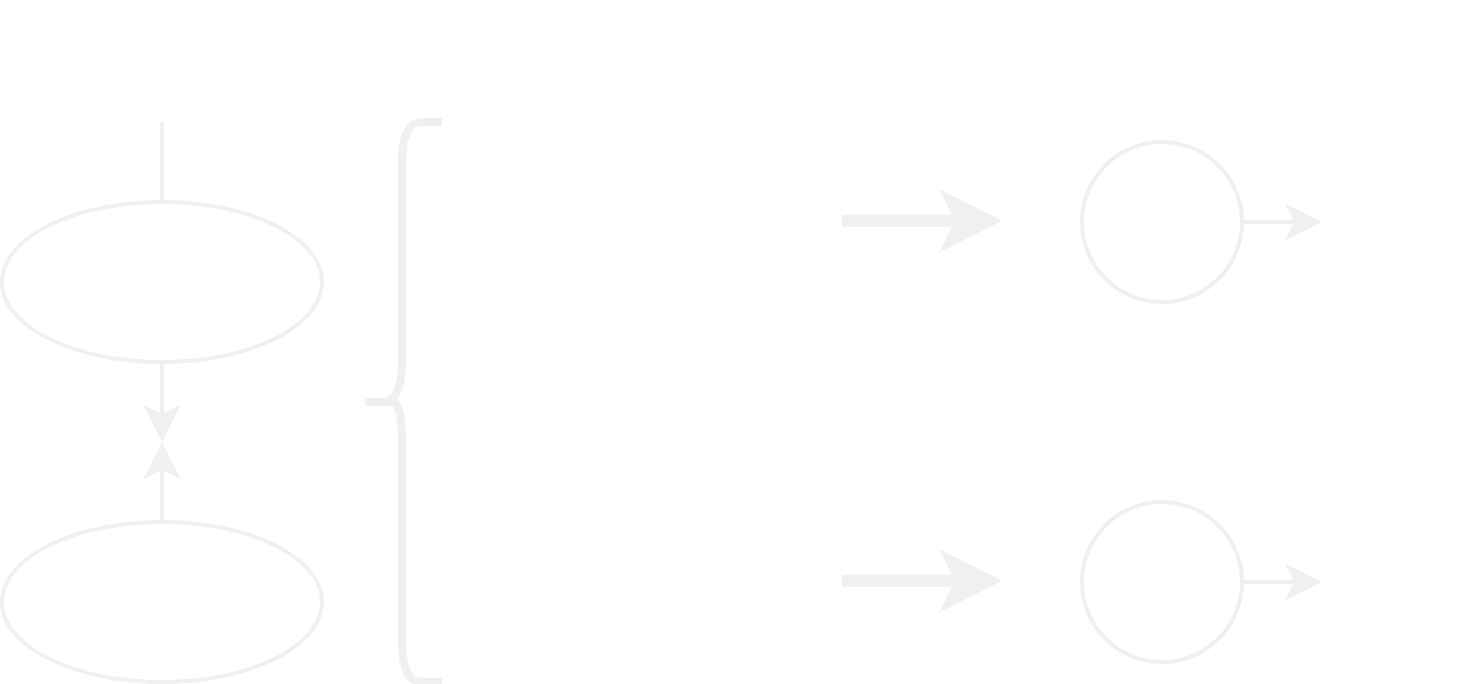

Rewriting with attributes

Rewriting with attributes

				let rec apply_rule a1 a2 =
					match a1, a2 with
					...
					| IsEven r, Int n
					| Int n, IsEven r when n mod 2 = 0
						-> T -><- r

					| IsEven r, Int _
					| Int _, IsEven r
						-> F -><- r
					...


Problems

• Symmetry $\Rightarrow$ verbosity
• Catch-all case (_, _)
• Types are not enforced
• $\Rightarrow$ $T \rightarrow\leftarrow \text{IsEven} (r)$ is accepted
• Polarity is not enforced
• $\Rightarrow$ $T \rightarrow\leftarrow T$ is accepted

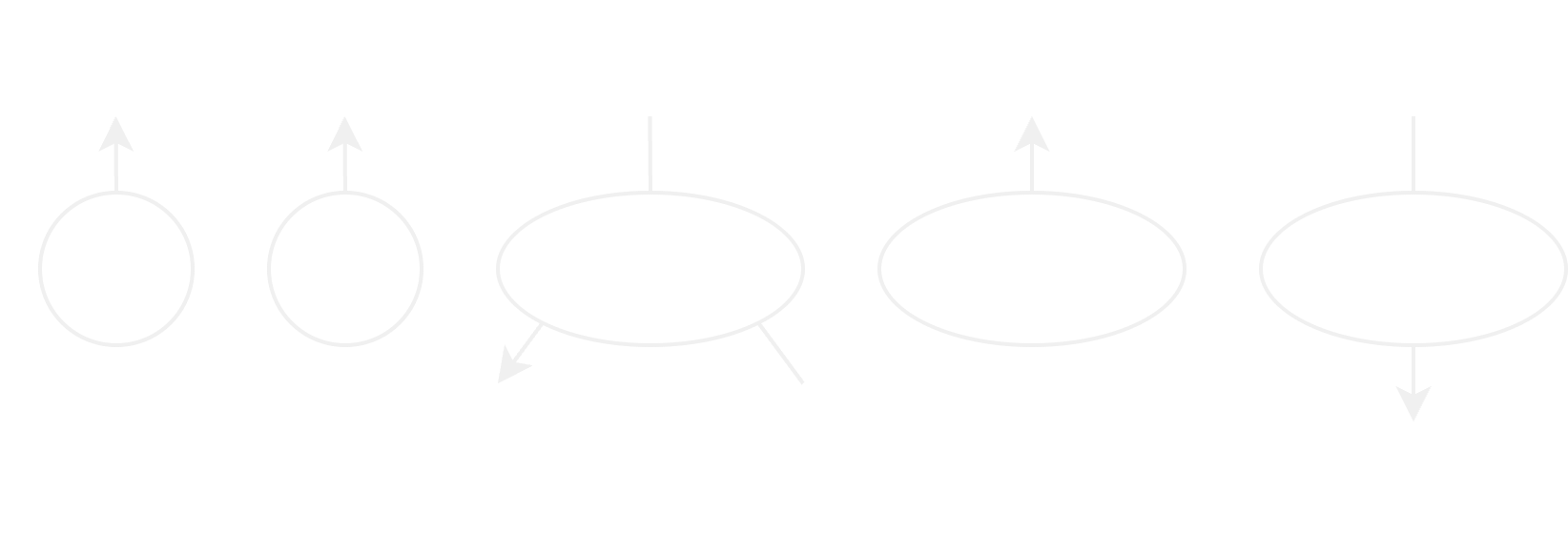

Type compatibility

		type agent =
			| Int of int
			| IsEven of agent
			| T
			| F
			| And of agent * agent
			| NamePos of agent promise
			| NameNeg of agent resolver


Type compatibility

		type _ agent =
			| Int : int -> int agent
			| IsEven : bool agent -> int agent
			| T : bool agent
			| F : bool agent
			| And : bool agent * bool agent -> bool agent
			| NamePos : 'a agent promise -> 'a agent
			| NameNeg : 'a agent resolver -> 'a agent


Type compatibility

		type _ agent =
			| Int : int -> int agent
			| IsEven : bool agent -> int agent
			| T : bool agent
			| F : bool agent
			| And : bool agent * bool agent -> bool agent
			| NamePos : 'a agent promise -> 'a agent
			| NameNeg : 'a agent resolver -> 'a agent


• Uses Generalised Algebraic Data Types (GADTs)
• Each constructor case can restrict the type variable independently

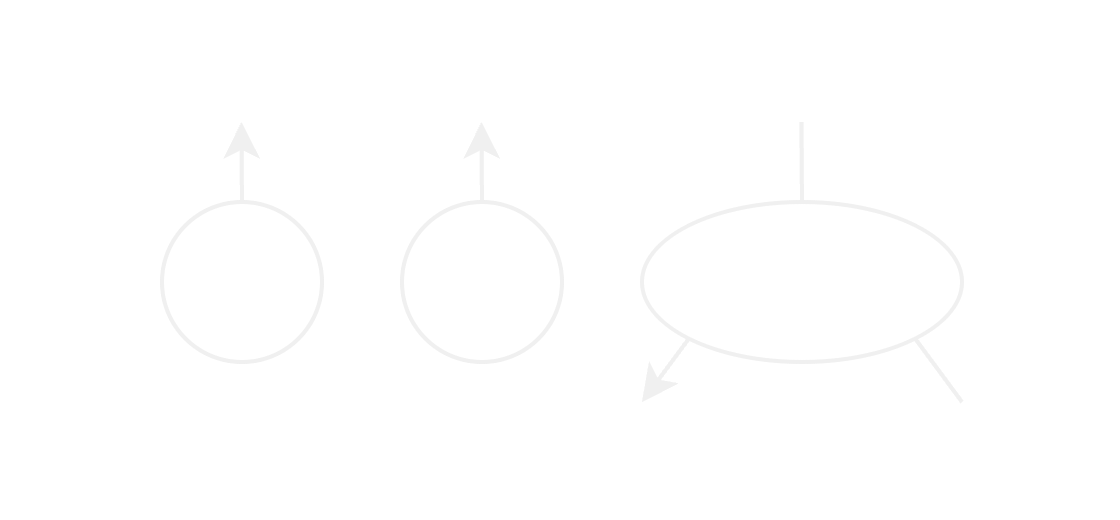

Polarity

		type _ agent =
			| Int : int -> int agent
			| IsEven : bool agent -> int agent
			| T : bool agent
			| F : bool agent
			| And : bool agent * bool agent -> bool agent
			| NamePos : 'a agent promise -> 'a agent
			| NameNeg : 'a agent resolver -> 'a agent


Polarity

		type (_, _) agent =
			| Int : int -> (int, pos) agent
			| IsEven : (bool, neg) agent -> (int, neg) agent
			| T : (bool, pos) agent
			| F : (bool, pos) agent
			| And : (bool, neg) agent * (bool, pos) agent
				-> (bool, neg) agent
			| NamePos : ('a, pos) agent promise -> ('a, pos) agent
			| NameNeg : ('a, pos) agent resolver -> ('a, neg) agent


Polarity

		type pos = |
		type neg = |


		type (_, _) agent =
			| Int : int -> (int, pos) agent
			| IsEven : (bool, neg) agent -> (int, neg) agent
			| T : (bool, pos) agent
			| F : (bool, pos) agent
			| And : (bool, neg) agent * (bool, pos) agent
				-> (bool, neg) agent
			| NamePos : ('a, pos) agent promise -> ('a, pos) agent
			| NameNeg : ('a, pos) agent resolver -> ('a, neg) agent


Final rule encoding

		let rec apply_rule :
			type a. (a, pos) agent -> (a, neg) agent -> unit =
			fun a1 a2 -> match a1, a2 with
			| T, And (r, b)											-> b -><- r
			| F, And (r, _)											-> F -><- r
			| Int n, IsEven r when n mod 2 = 0	-> T -><- r
			| Int _, IsEven r										-> F -><- r
			| T, If (r, t, _)										-> t -><- r
			| F, If (r, _, e)										-> e -><- r
			| NamePos v, a											-> await v -><- a
			| a, NameNeg v											-> resolve v a

		and ( -><- ) :
			type a. (a, pos) agent -> (a, neg) agent -> unit =
			fun a1 a2 -> run_async pool (fun _ -> apply_rule a1 a2)


Benchmarks

• Manually encoded example nets
• Fibonacci, Mergesort, Quicksort
• Run on 3.70 GHz Intel Core i9 (10 cores $\times$ 2 threads)
• Run with different thread counts
• Averaged over 100 runs

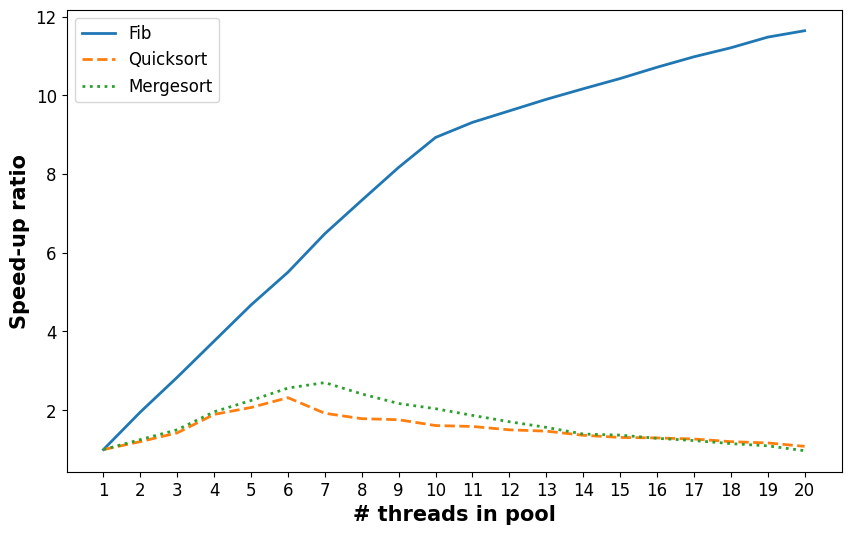

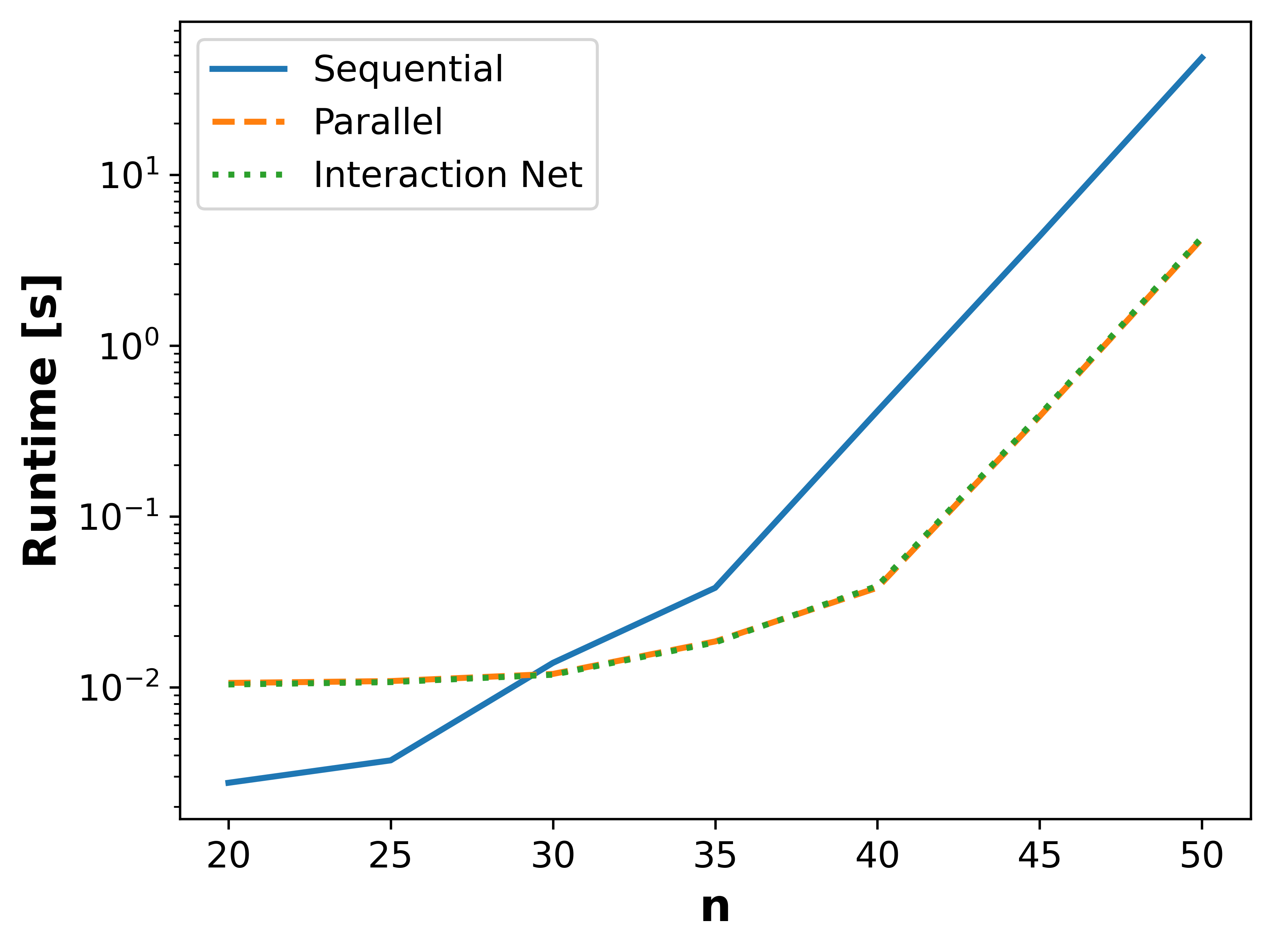

Speedup

Fibonacci example

Conclusion

• First encoding of interaction nets in OCaml
• First embedding of Lafont's type system
• Type system enforced statically
• For some algorithms $\Rightarrow$ speedup through parallelism

Future work

• Need more benchmarks
• Garbage collection
• Cache behaviour
• Try different parallelism-library
• Compiler

Questions?

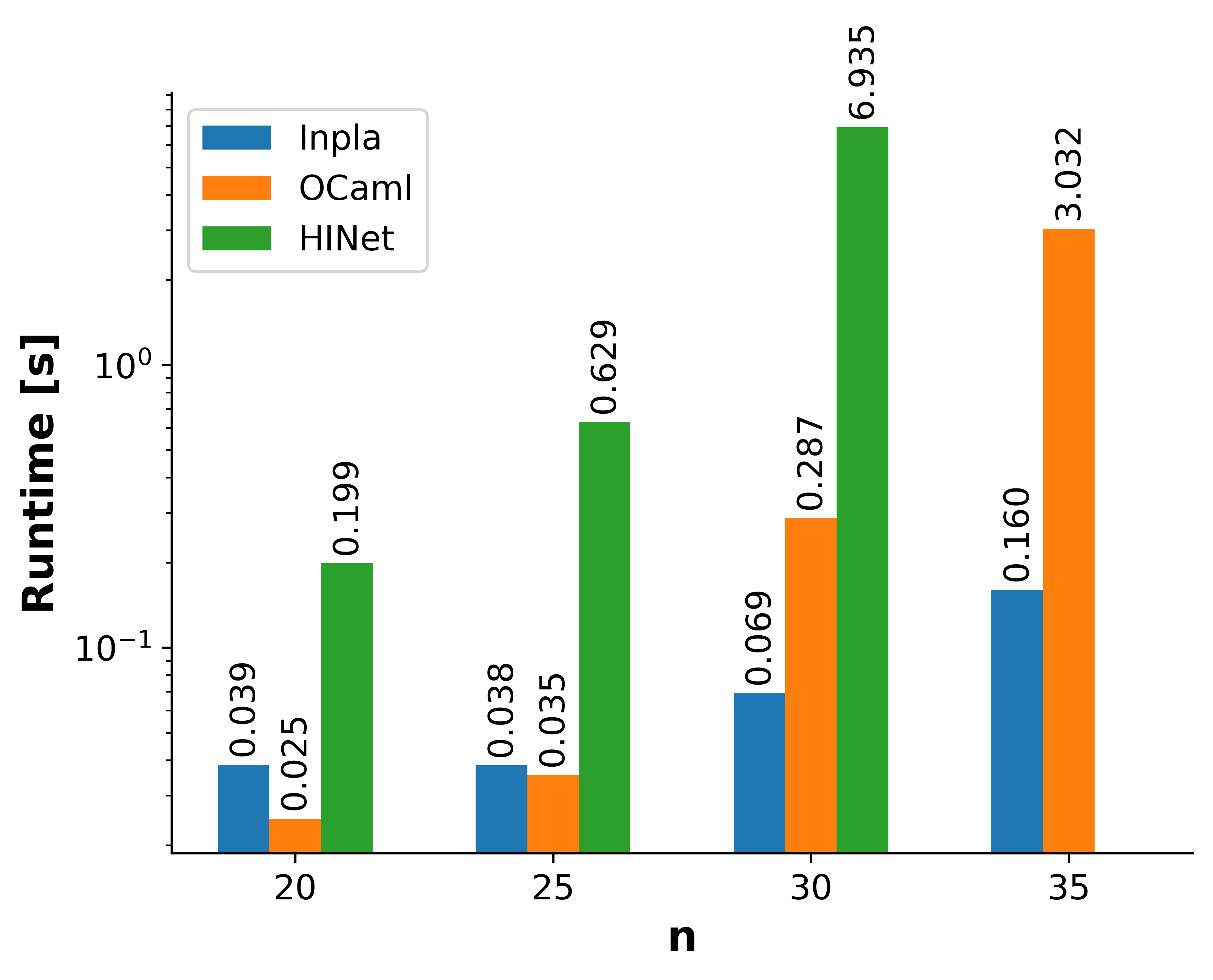

Tool comparison (Fibonacci)

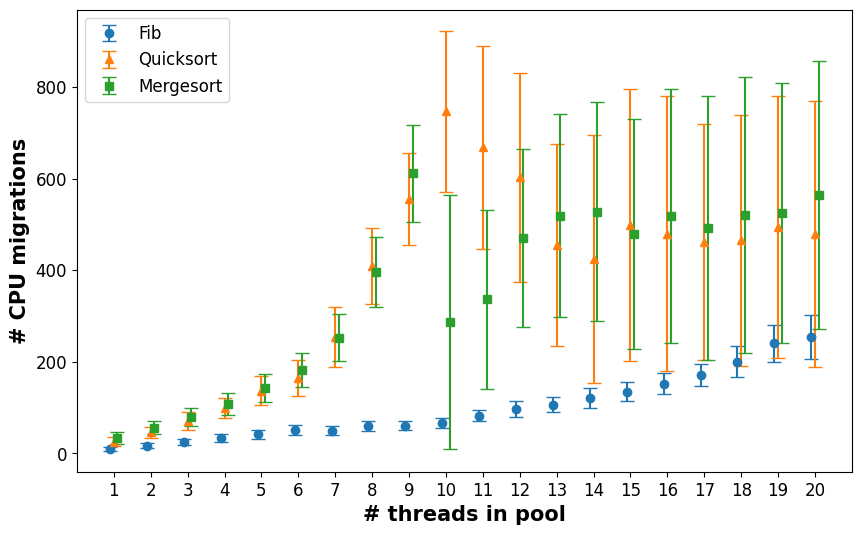

CPU migrations
